ZK6126GHA-CNG


The eco-friendly alternative!

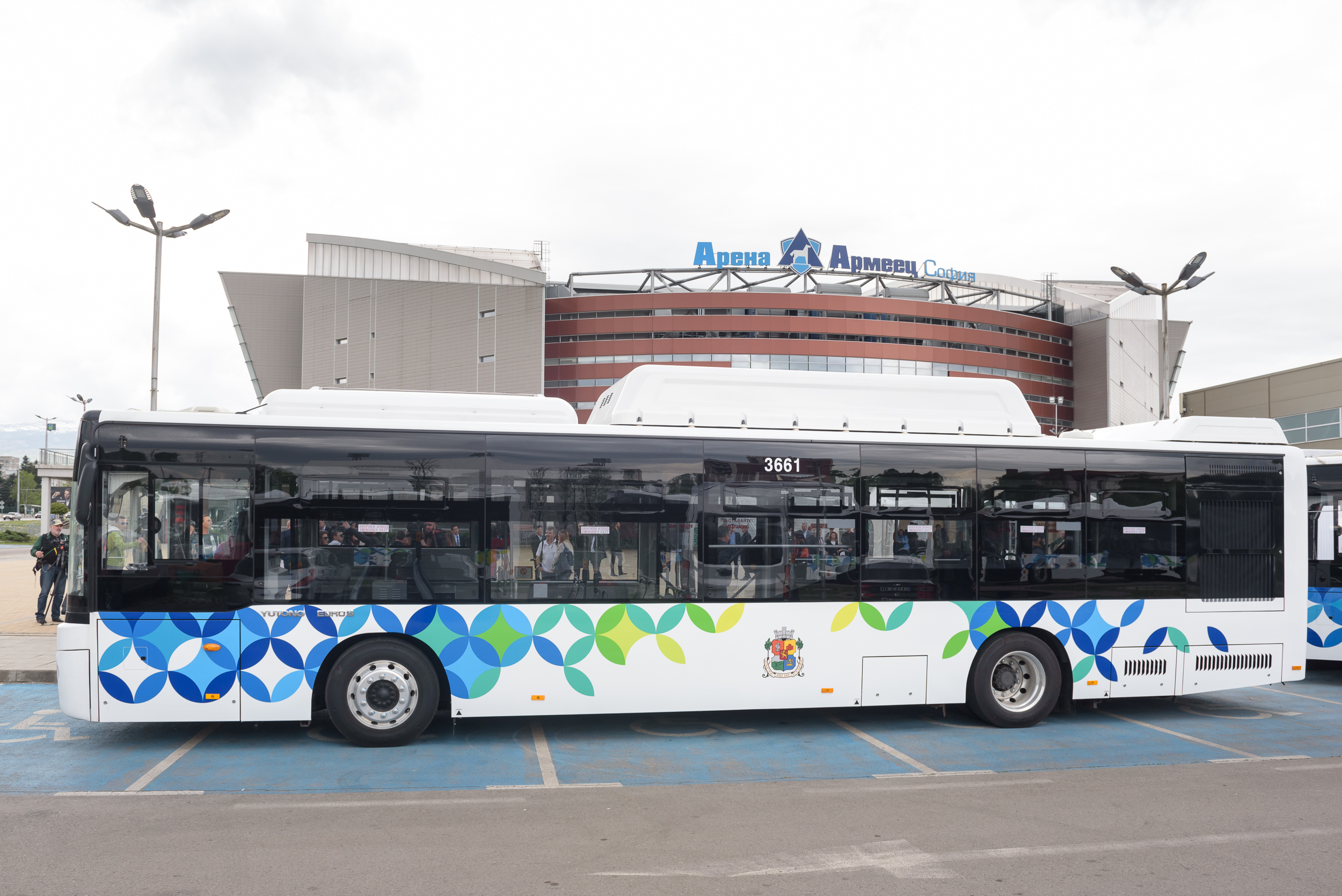

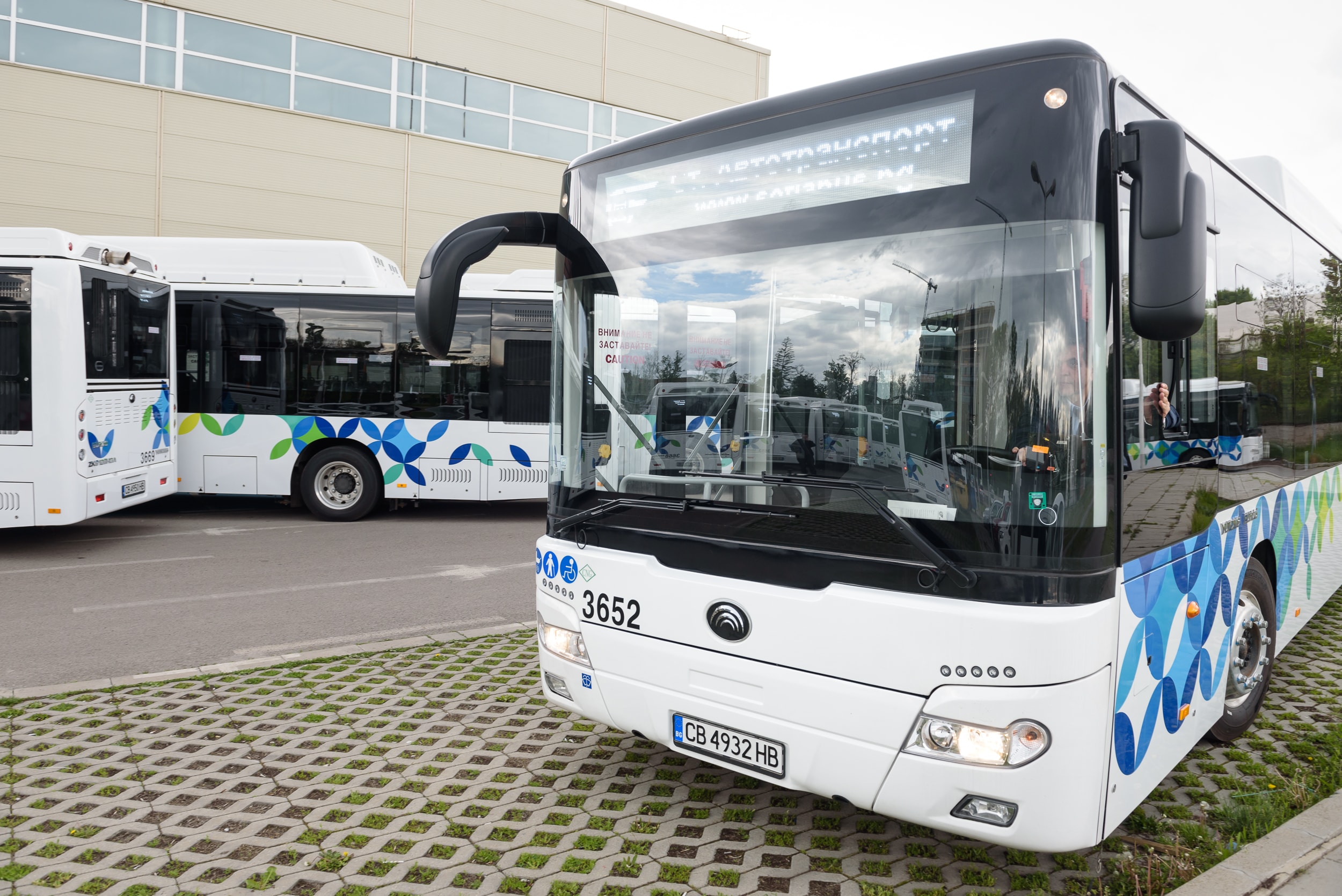

Yutong ZK6126GHA is a natural gas (CNG) bus which provides an environmentally friendly alternative to urban mobility. It is 12 meters, low-entry bus, with a double-galvanized steel body for greater passenger safety.

Extended driving range!

Yutong ZK6126GHA buses are equipped with composite gas cylinders with 1500 liters of capacity. When operated in normal conditions, the guaranteed mileage of the bus with fully charged bottles is 400 km



More comfort and functionalities!

CNG Yutong buses have a capacity of 74 passengers – 30 seated and 44 standing. All buses are equipped with optional stop buttons, an openable roof hatch, dual pneumatic doors with signaling and anti-opening function on the move.

Protect the nature!

A Yutong natural gas-powered bus saves over 130 tons of carbon dioxide emissions over its lifetime. Approximately 30% lower are emitted nitrogen oxides, where as fine particles emissions are reduced by more than 90%.

car1
Parameter
Bus modeZK6126HGA
Dimension(mm)12 165 * 2 550 * 3 460
Wheelbase6000
G.V.W.(kg)18000
car2
Chassis
EngineISLGE6C320
Rated power(kw/rpm)239/2000
Rated torque(Nm/rpm)1356/(130-1400)
EmissionEuro VI
GearboxVOITH 864.6 AT
Clutch-
Front axleMolead independent axle, 7,5T, disc brake, anti-roll bar
Rear axleZF AV133/87, 13T, disc brake, final ratio 6.2, anti-roll bar
Brake systemDual circuit pneumatic service brake, front & rear disc brake, energy storage spring parking brake, KNORR ABS+ ESP+ASP
Steering systemESP protective support, BOSCH8098 integral power steering gear
Tyre275/70R22.5
SuspensionAir suspension, SACHS double shock absorber.
Air conditioner(A/C)Dual zone inverter air conditioner with intelligent control (32000kcal/l)
Gas cylinder capacity(L)376x4 (1504)
car3
Body
SeatsNewcity seats witch cushion, 30+2(foldable) seats, standing room for 45-58
Audio & video systemMP3 player, DVD player
Service partsElectronic clock, first aid kit, camera with a recording device
Other facilitiesRemote locking
