43,000,000,000km

From Zhengzhou to the whole country, from China to over 120 countries and regions like Cuba, Russia, Iran, Saudi Arabia, Sudan…

ZK6126HGA E12


The new full electric era!

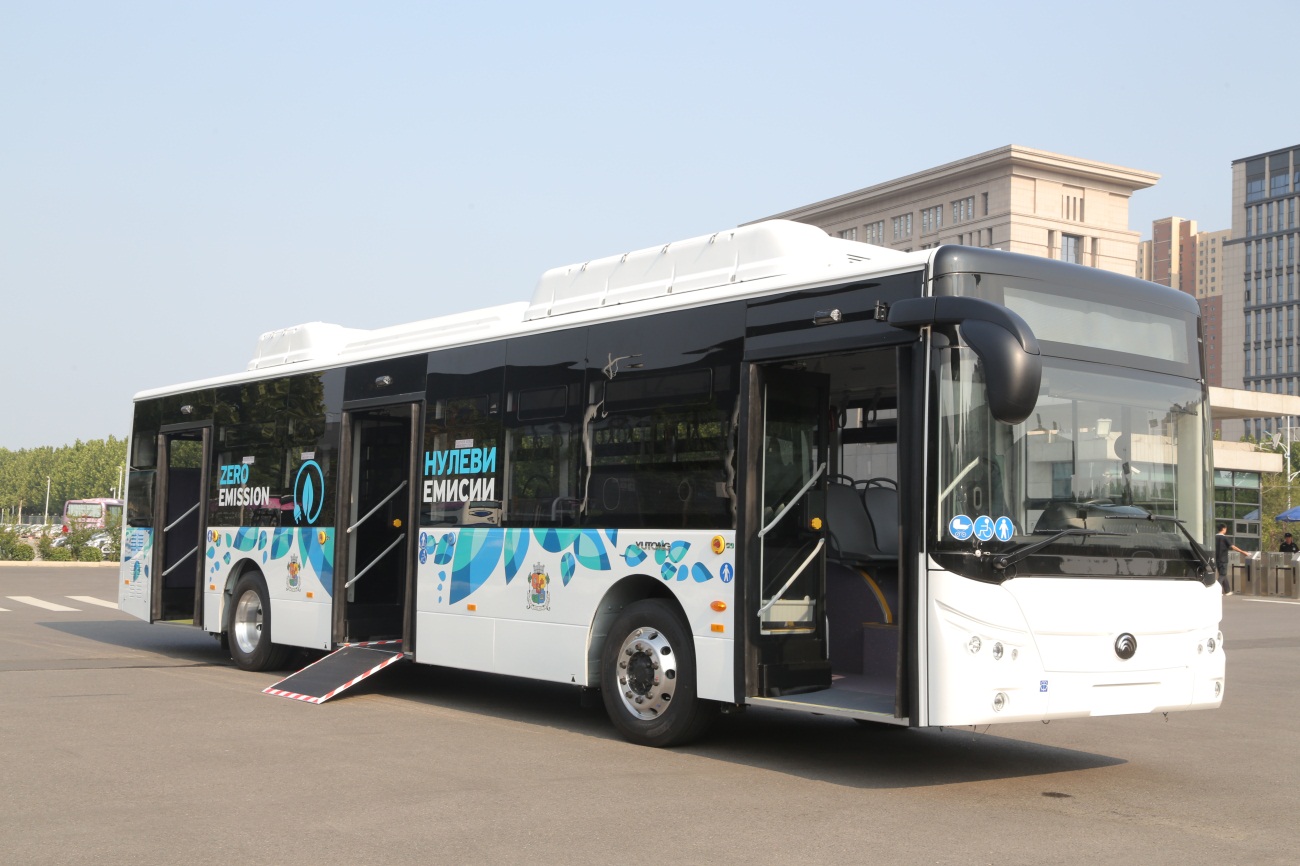

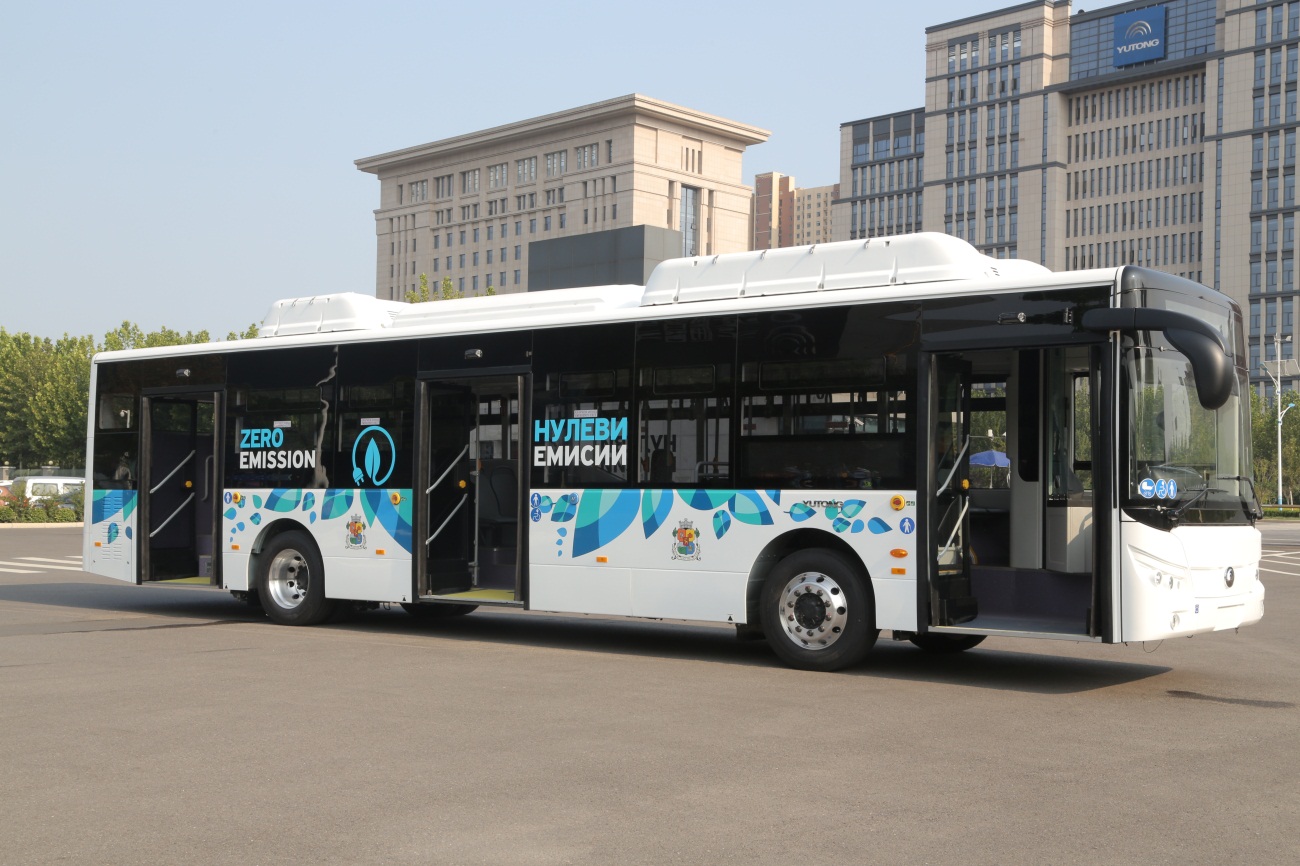

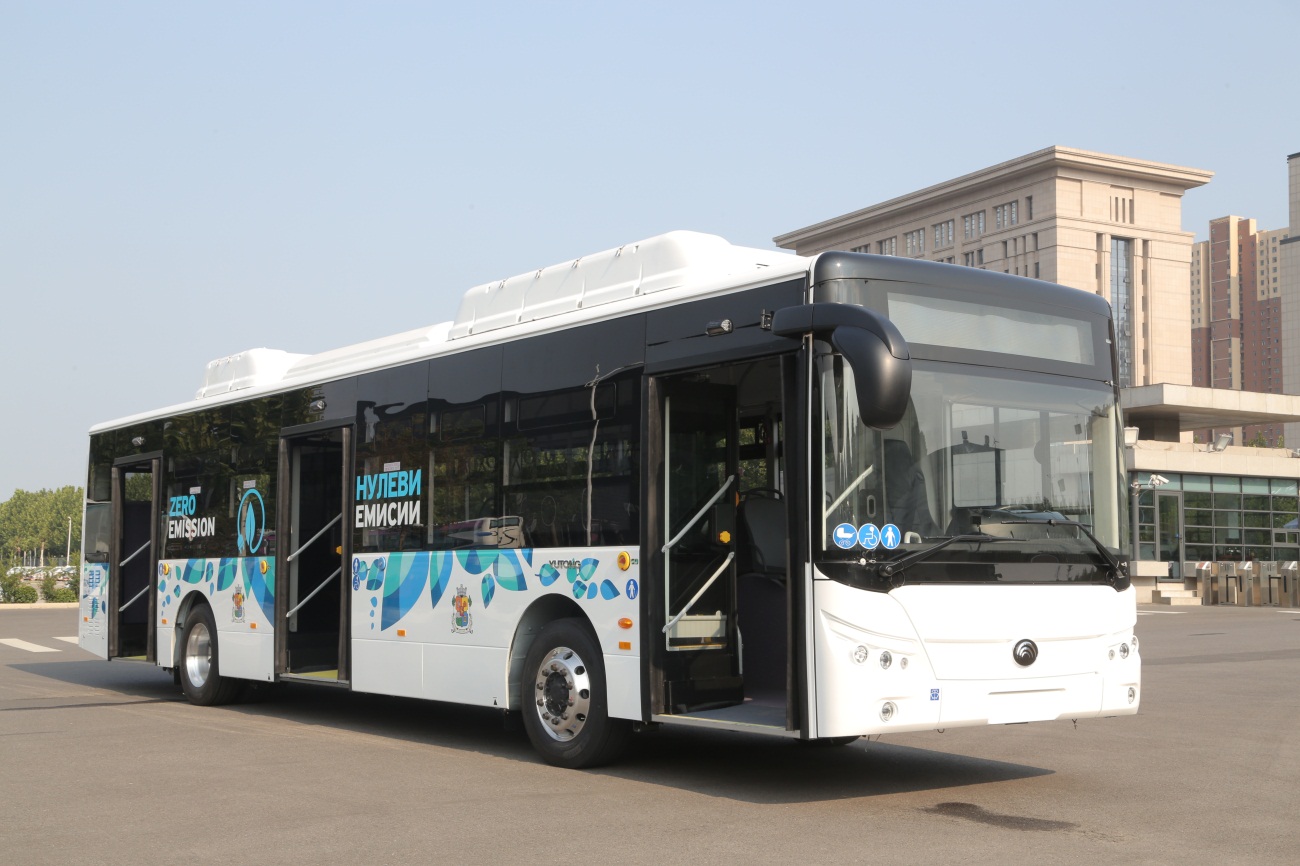

Yutong ZK6126HGA E12 is 12-meter, low-floor, full electric city bus, designed for cities with heavy traffic. The bus has 34 seats, one dedicated wheelchair area, 36 standing seats, and an electric ramp for disabled people.

Smarter technologies!

Yutong ReCtrl intelligent system provides extended driving range and lower power consumption. The CAN control system enables remote monitoring and technical support of each electric bus. The system provides information about bus location, battery status and remaining driving range.

Longer driving range!

Yutong E12 is an ecological alternative of conventional public transport. It provides longer driving range – more than 300 kilometers on a single charge, lower noise levels and zero emissions. It takes less than 3.5 hours to fully recharge bus batteries from 0% to 100%.  12 Li-Ion batteries capacity is 374 kWh. The maximum engine power of electric bus Yutong E12 is 350 Kw, the torque is 1,200 Nm.



Cost optimization!

The operation of Yutong E12 allows your company to optimize its operational costs. Due to the lower fuel cost and 3 times cheaper maintenance cost your cost per kilometers will be 4 times lower compared to the operation of conventional city bus.  There is no need to maintain such consumables as oil and fuel filters and etc.



E12(ZK6128BEVG)

car1
Parameter
Bus modelE12 ZK6128BEVG
Engine modelYutong M280-CV9H – 215 kW – 1 200 Nm
Dimension(mm)12170*2550*3300
G.V.W.(kg)1850
Luggage compartment(M3) -
Max. speed(km/h) -
Electric capacity374kwh
Battery typeLithiom-ion battery
60Kw charger 7h.
150Kw charger3h.
Rated power(kw/rpm)215
Rated torque(Nm/rpm)1200
Driving range370km (ambient temp.20℃,A/C off),290km(ambient temp.20℃,A/C on)
car2
Chassis
Chassis manufacturerZhengzhou Yutong Bus Co., Ltd.
Clutch -
Gearbox -
Brake systemDual circuit pneumatic service brake, front & rear brake, energy storage spring parking brake, air drier, imported condenser, alu air reservoir, ESC
Suspension systemF2R4 air suspension, SACHS hydraulic double adjustable shock absorber, ECAS with lifting system, kneeling system
Tire305/70R22.5
car3
Body
Seats32- seats, 1 for invalids and space for 38 standing passengers
InteriorsNEW CITY passenger seats with armrest. Electric ramp for people with disabilities. Stop buttons on request. Electric roof hatches. Tinted glass with opening segments. Double pneumatic doors. Handles for standing passengers.
Air conditioner (A/C)Dual zone inverter air conditioner with intelligent control (reverse, 32,000 kcal)
Heating systemIndependent, intelligent air conditioning and heating system
Audio & video systemRadio, MP3 / USB
Service partsPneumatic seat for the driver. Openable driver window. Defrosting system. Electrical remote adjustable mirrors. Rear view camera. Door monitoring and passenger compartments. Dashboard Monitor.
